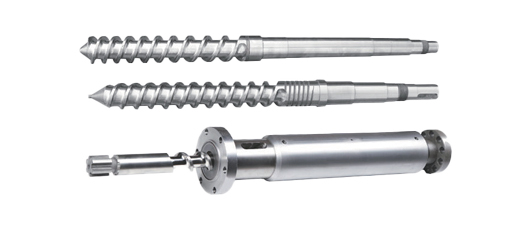

Rubber machine screw and barrel specification

1.Cooling feeding rubber screw and barrel Diameter: Φ40-Φ300mm, L/D=8~20

2.Hot feeding rubber screw and barrel Diameter: Φ30-Φ250mm, L/D=4~8

3.Pin rubber screw and barrel Diameter: Φ60-Φ250mm, L/D=12~18 In order to get good plasticization to different rubber material, we could supply different screw designs.

RAW MATERIAL AND HARDENING REQUIREMENTS

Material：

38CrMoAIA (1.8509)，42CrMo，41CrAlMo7；Stainless steel 316，316L，316Ti，9Cr18Mo,9Cr18MoV ,Hastelloy C276,C4, M2,SKD61, (H13) SKD11 (D2),K110, Inconel 625

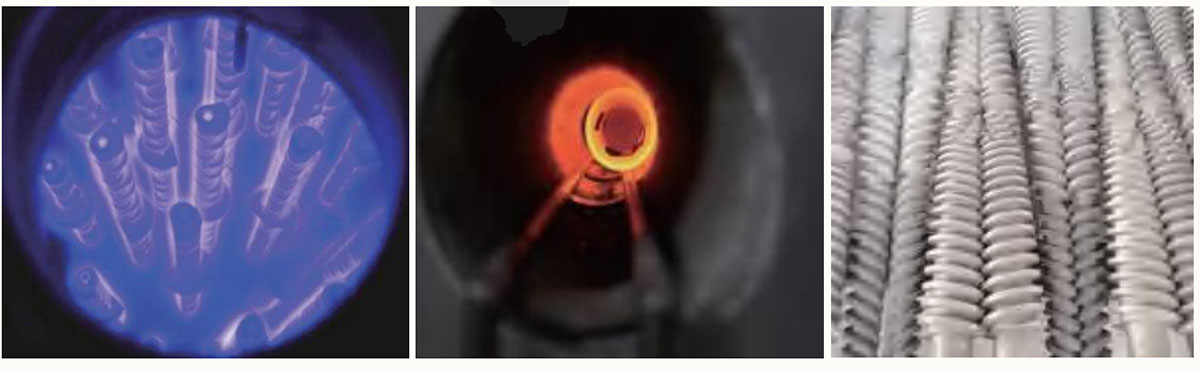

Heat treatment method: Nitriding treatment,Surface hardness: HV≥900[HRC≥68].Nitriding depth: 0.6-0.8mm.

Surface coating treatment, Depth: 0.02-0.15mm.

High-frequency quenching treatment, overall hardening.Hardness(HRC): 55-65

Bimetallic screw and barrel series: Iron-based alloy(HT2TJ). Hardness(HRC) : 58-60 Nickel base alloy(HT6NJ).Hardness(HRC):53-56 lron-based alloy with tungsten, carbide(HT3W). Hardness(HRC):58-60 Nickel base alloy with tungsten carbide(HT5JW).Hardness(HRC):55-58 Superhard alloy(HT9TT).Hardness(HRC):62-65

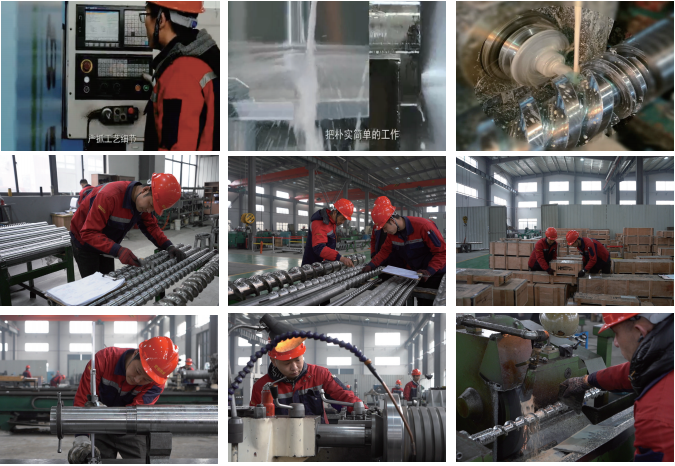

PROCESSING

Nitride screw processing：Book material → Heat treatment(quenching and tempering) → Rough machining → Heat treatment(setting) → Finishing machining → Rough milling → Heat treatment(Nitride hardening) → Finishing milling → Inspection → Delivery.

Bimetallic screw processing：Book material → Heat treatment (quenching and tempering) → Rough machining → Heat treatment(setting) → Finishing machining → Flight spray and melt bimetallic alloy → Rough milling → Inspection → Heat treatment(Nitride hardening) → Finishing milling → Inspection → Delivery

Nitride barrel processing：Book material → Rough machining (inner diameter) → Heat treatment(quenching and tempering) → Finishing machining → Rough miling → Heat treatment (Nitride hardening) → Finishing milling → Inspection → Delivery.

Bimetallic barrel processing：Book material → Rough machining(inner diameter) → Bimetallic alloy casting(inner diameter) → Finishing machining → Finishing milling → Inspection → Delivery.
